Metal Two-Piece Floating Ball Valve

Short Description:

Standard Ball Valves are in accordance with API 6A 21th latest Edition, and use the right materials for H2S service according to NACE MR0175 standard.
Product Specification Level: PSL1 ~4
Material Class: AA~FF
Performance Requirement: PR1-PR2
Temperature Class: LU


Product Detail

Product Tags

CEPAI’s API6A ball valves have different types, such as floating, trunnion mounted, top-entry ball valves, etc. CEPAI’s API 6A ball valves are designed for Wellhead and Christmas tree equipment, and also for different special environment with various fluids such as extreme sour gas services, ensure the highest level of requirements in different environment such as high temperature and pressure applications, CEPAI’s ball valves can provide the rigidity and strength required in special environment to meet customer’s standard. Operation can be Worm gear, pneumatic and Hydraulic

Design Specification:
Standard Ball Valves are in accordance with API 6A 21th latest Edition, and use the right materials for H2S service according to NACE MR0175 standard.
Product Specification Level: PSL1 ~4    Material Class: AA~FF   Performance Requirement: PR1-PR2 Temperature Class: LU

Product Features:
◆ Double Block and Bleed design(DBB)
◆ Three section type forge steel structure, convenient assembling and repairing
◆ Floating seat between ball and valve seat which can be fit more tightly and good sealing performance
◆ Valve with high performance mechanism driving, small torque
◆ Fire safe, anti-static, anti-blowout stem
◆ supersonically spray hard alloy for the gate and seat back sealing design
◆ Soft or metal seated with hardfacing on ball and seats

Name Ball Valve
Model Pneumatic Ball Valve/Electric Ball Valve/Top Entry Ball Valve/Floating Ball Valve
Pressure 2000PSI~10000PSI
Diameter 2-1/16”~9”(52mm~230mm)
Working Temperature  -46℃~121℃(LU Grade)
Material Level AA、BB、CC、DD、EE、FF、HH
Specification Level PSL1~4
Performance Level PR1~2

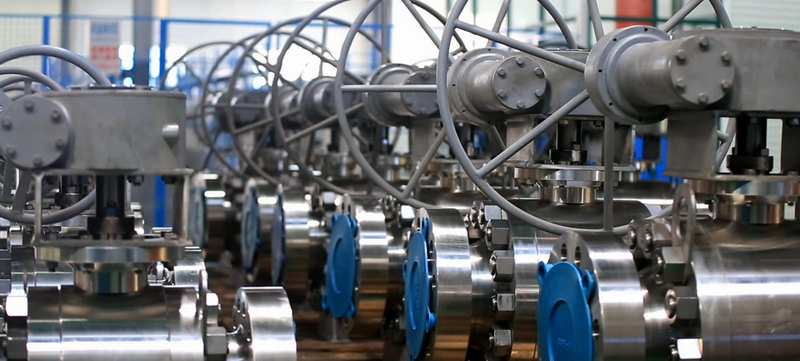

Production Photos

1
2
3
4
