Expanding Gate Valve

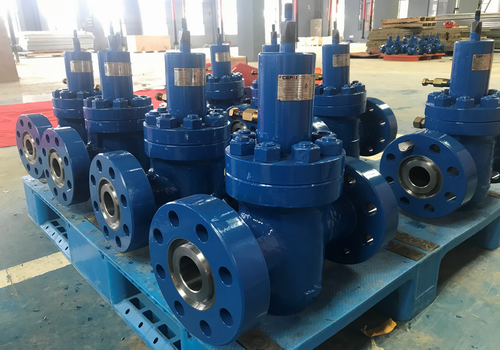

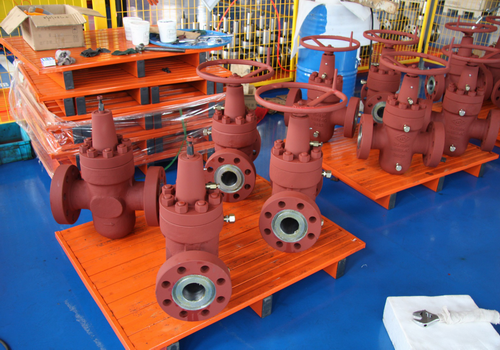

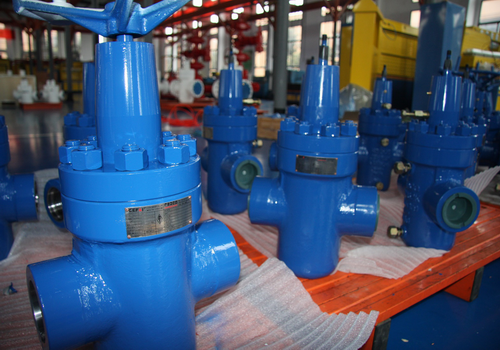

CEPAI’s WKM gate valve, full bore design, effectively eliminate the pressure drop and Vortex, slowing down flushing by solid particles in the fluid, valve gate with mechanical sealing structure, which does not require fluid pressure and good sealing performance, low torque operation during open and close operation, and low wear between valve gate and seat, metal to metal seal between valve bonnet and body, soft seal or metal to metal seal between valve gate and valve seat, inject sealant through injection valve periodically to improve the sealing performance of the valve
It’s expanding-style gates are used in Series NW and RWI Gate Valves. This popular gate design is used in manual valves to produce a high seating force against both the upstream and downstream seats simultaneously as the handwheel is tightened. This force effects a tight mechanical seal which is unaffected by line pressure fluctuations or vibration. The expanding gate allows a positive mechanical seal across both seats, both upstream and downstream, with or without line pressure. The gate assembly uses an angular gate face which is collapsed during travel. When closed, a body stop causes any further downward travel to force the faces of the gate assembly outward to affect a positive line flow seal. When opened, a bonnet stop causes any further upward travel to force bottom faces to expand and seal against the seats to isolate flow from the valve body cavity.
Standard WKM gate valves are in accordance with API 6A 21th latest Edition, and use the right materials for different service according to NACE MR0175 standard.
Product Specification Level: PSL1 ~4 Material Class: AA~HH Performance Requirement: PR1-PR2 Temperature Class: LU
◆ Casting valve body
◆ Double Block-and-Bleed
◆ Repeated Positive shut-off
◆ External thermal body relief
|Name||Expanding Gate Valve|
|Model||WKM gate valve|
|Working Temperature||-46℃～121℃(LU Grade)|
CEPAI’s WKM gate valves, which materials for bodies are Casting( A487GR9 OR A487-4C), are designed for Oil and natural gas wellheads, seat types can be fixed and floating, packing is used for high-temperature applications.
