Casing Heads

Short Description:

Standard Accessories are in accordance with API 6A 21th latest Edition, and use the right materials for different operating condition according to NACE MR0175 standard.
Product Specification Level: PSL1 ~4
Material Class: AA~HH
Performance Requirement: PR1-PR2
Temperature Class: LU


Product Detail

Product Tags

CEPAI manufactures tubing/casing heads, hangers and adapter Flanges in all sizes and pressure ratings. The casing head is the lowest part of the wellhead assembly and is always connected to the surface casing string. It supports subsequent drilling wellhead and completion equipment. Popular Adapter Flanges are double studded Adapter Flanges, Companion Flanges, and X Union Adapters. Customers may use Adapter Flanges for transition in nominal size and /or pressure rating. The Adapter Flanges have minimum overall heights, or customer specified thickness, consistent with design considerations. Tree caps are installed on top of Christmas Trees for quick access to the tubing bore-via Tester of Lubricator Adapter for bottom hole testing, installing back-pressure valves etc. Bottom Hole Test Adapters allow a flexible means of entry into the tubing bore. Bottom Hole Test Adapters are used where an integral flanged unit is preferred. These adapters are furnished in various sizes, and working pressure up to 20,000PSI.

Design Specification:
Standard Accessories are in accordance with API 6A 21th latest Edition, and use the right materials for different operating condition according to NACE MR0175 standard.
Product Specification Level: PSL1 ~4    Material Class: AA~HH Performance Requirement: PR1-PR2 Temperature Class: LU

Product Features:

◆ C-22 accepts C-21 non-automatic sealing casing hanger w/ type H seal ring, C-22 & C-122 automatic sealing casing hanger.
◆ C-22-BP-ET has bowl-protector lockdown screws in the top flange.
◆ C-22 eliminates the need for lockdown screws to retain bowl protectors.
◆ Bottom preparation can be either male-threaded, female-threaded,
◆ Supports blowout preventers while hole is drilled for next casing string.
◆ Provides for suspending and packing off the next casing string.
◆ Provides outlets for annular access.
◆ Provides for testing BOPs while drilling.

◆ Straight bowl prevents wedge-locking of bowl protectors, casing hangers and test plugs.
◆ Seal bore less likely to be damaged during drilling.
◆ Detachable base plate available for C-22 heads provides time savings
and adds value due to better utilization of customer-owned property.
◆ C-22-EG reduces number of leak paths, lowers cost and increases safety
as there is no need to work beneath the BOPs.



Name TUBING/CASING HEAD/HANGERS/ADAPTER/GOATS/FLANGE/CROSS/TEE
Model ACCESSORIES
Pressure 2000PSI~20000PSI
Diameter 1-1/16”~13-5/8”
Working Temperature  -46℃~121℃(LU Grade)
Material Level AA、BB、CC、DD、EE、FF、HH
Specification Level PSL1~4
Performance Level PR1~2


Technical Data of
Companion Flange.

COMPANION FLANGE

Flange Size(ID)

Casing Size

WP

Flange Size(ID)

Casing Size

WP

11"

5 1/2" OD

2,000

11"

7 5/8" OD

5,000

11"

5 1/2" OD

3,000

13 5/8"

8 5/8" OD

2,000

11"

5 1/2" OD

5,000

13 5/8"

8 5/8" OD

3,000

11"

7" OD

2,000

13 5/8"

8 5/8" OD

5,000

11"

7" OD

3,000

13 5/8"

9 5/8" OD

2,000

11"

7" OD

5,000

13 5/8"

9 5/8" OD

3,000

11"

7 5/8" OD

2,000

13 5/8"

9 5/8" OD

5,000

11"

7 5/8" OD

3,000

11"

9 5/8" OD

10,000


Technical Data of
 Double Studded Adapter Flange

DOUBLE STUDDED ADAPTER FLANGE

Description

Flange thickness(mm)

Description

Flange thickness(mm)

2-1/16"x5M To 3-1/8"x5M

70

11"x15M To 18-3/4"x15M

256

2-1/16"x10M To 4-1/8"x10M

80

11"x5M To 13-5/8"x5M

144

3-1/16"x10M To 4-1/8"x10M

130

13-5/8"x10M To 11"x10M

267

3-1/16"x10M To 4-1/8"x10M

80

13-5/8"x3M To 16-3/4"x2M

150

4-1/16"x5M To 2-1/16"x5M

75

13-5/8"x19M To 18-3/4"x15M

256

4-1/16"x5M To 3-1/8"x5M

83

13-5/8"x5M To 18-3/4"x15M

256

4-1/16"x2M To 4-1/16"x5M

80

18-3/4"x15M To 20-3/4"x3M

270

7-1/16"x10M To 13-5/8"x10M

170

20-3/4"x3M To 18-3/4"x15M

256

7-1/16"x5M To 13-5/8"x5M

150

21-1/4"x2M To 18-3/4"x15M

256


M
ore Features:

Material
Class

Application

Body, Bonnet, End,
& Outlet

Pressure Controlling Parts, Stems, Mandrel Hangers

AA

General Service

Carbon/Alloy Steel

Carbon/Alloy Steel

BB

General Service

Carbon/Alloy Steel

Stainless Steel

CC

General Service

Stainless Steel

Stainless Steel

DD

Sour Service

Carbon/Alloy Steel

Carbon/Alloy Steel

EE

Sour Service

Carbon/Alloy Steel

Stainless Steel

FE

Sour Service

Stainless Steel

Stainless Steel

HH

Sour Service

CRA's

CRA"s

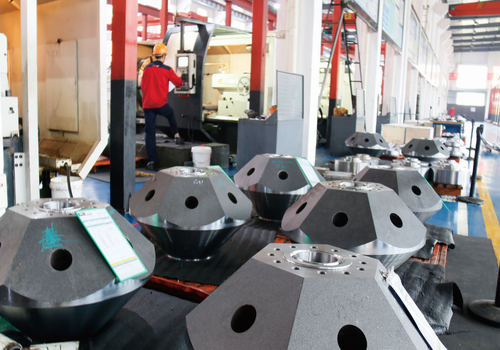

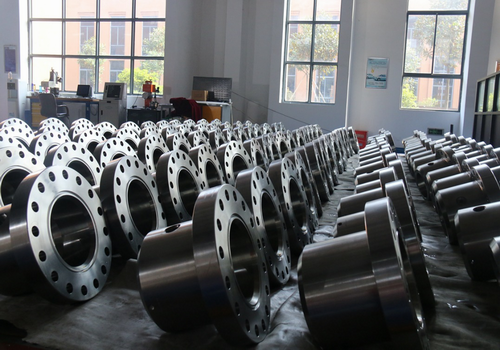

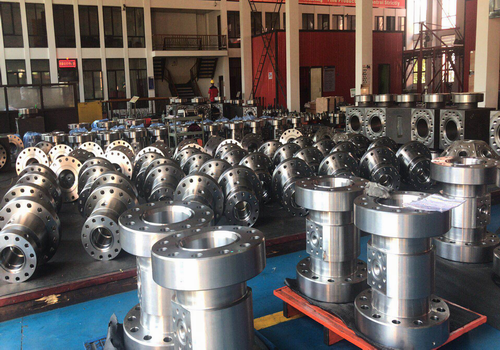

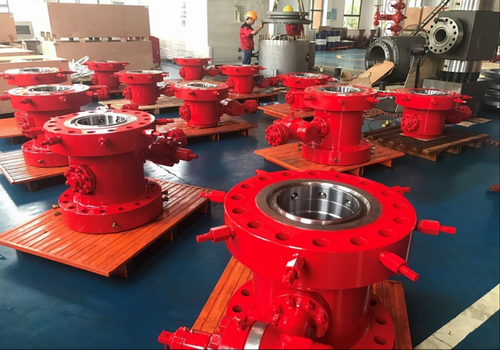

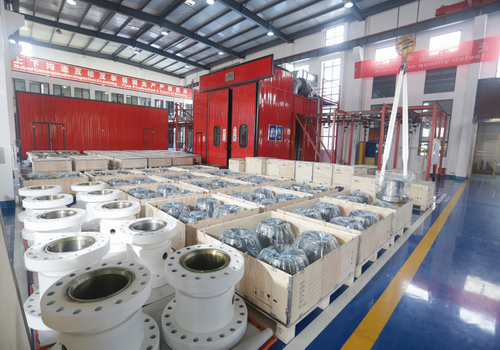

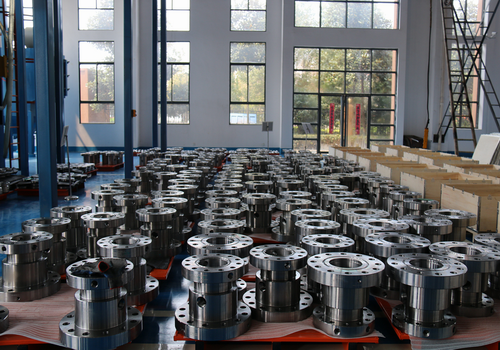

Production Photos

1
2
3
4
5
6
